Write, Read and Execute NTFS Alternate Data Streams

Purpose

Background Information

Demonstration

Purpose

Background Information

Demonstration

1. Start the command prompt of the Windows^™ SDK in an arbitrary, preferable empty directory, then create an (empty) file or subdirectory, for example streams, there:

   IF DEFINED STREAMS (MKDIR streams) ELSE (COPY NUL: streams)

           1 file(s) copied.

2. Write the hexadecimal dump of a 16-bit DOS program that prints its copyright message on standard output to an alternate data stream, for example .txt, of the file or subdirectory created in step 1.:

   IF EXIST streams @(
   ECHO 4d 5a 90 00 01 00 00 00 04 00 00 00 ff ff 00 00 e0 00 00 00 43 00 00 00
   ECHO 40 00 00 00 00 00 00 00 00 00 00 00 19 57 04 27 00 00 00 00 00 00 00 00
   ECHO 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 28 43 29 6f 70 79 72 69
   ECHO 67 68 74 20 32 30 30 34 2d 32 30 32 36 2c 20 53 74 65 66 61 6e 20 4b 61
   ECHO 6e 74 68 61 6b 20 3c 73 74 65 66 61 6e 2e 6b 61 6e 74 68 61 6b 40 6e 65
   ECHO 78 67 6f 2e 64 65 3e 0d 0a 07 24 0e 1f 33 d2 b4 09 cd 21 b8 01 4c cd 21) 1>streams:.txt

   Note: the MSKB article 65122 documents the IMAGE_DOS_HEADER structure contained in the first 64 bytes; it is followed by the 67 ASCII characters (C)opyright 2004-2026, Stefan Kanthak <‍stefan‍.‍kanthak‍@‍nexgo‍.‍de‍>\r\n\a$ and the real mode machine code.

   Note: the command lines can be copied and pasted as block into a Command Processor window.

3. ￿

   ; Copyright © 2004-2026, Stefan Kanthak <‍stefan‍.‍kanthak‍@‍nexgo‍.‍de‍>

   	.model	tiny

   e_header struct				; DOS .EXE header
   e_magic	word	5A4Dh			; magic number "MZ"
   e_cblp	word	stop - header		; bytes on last page of file
   e_cp	word	1			; pages in file
   e_crlc	word	0			; number of relocation table entries
   e_cparhdr word	sizeof header / 16	; size of header in paragraphs
   e_minalloc word	0			; minimum extra paragraphs needed
   e_maxalloc word	65535			; maximum extra paragraphs needed
   e_ss	word	0			; initial (PSP relative) SS value
   e_sp	word	stack - header		; initial (SS relative) SP value
   e_csum	word	0			; checksum
   e_ip	word	sizeof message		; initial (CS relative) IP value
   e_cs	word	0			; initial (PSP relative) CS value
   e_lfarlc word	sizeof header		; file offset of relocation table
   e_ovno	word	0			; overlay number
   e_res	word	4 dup (0)		; reserved words
   e_oemid	word	5719h			; OEM identifier
   e_oeminfo word	2704h			; OEM information
   e_res2	word	10 dup (0)		; reserved words
   e_lfanew dword	0			; file offset of new exe header
   e_header ends

   	.code

   header	e_header <>

   message	byte	"(C)opyright 2004-2026, Stefan Kanthak <‍stefan‍.‍kanthak‍@‍nexgo‍.‍de‍>", 0Dh, 0Ah, 07h, 24h

   start:
   	push	cs
   	pop	ds
   	xor	dx, dx
   	mov	ah, 09h
   	int	21h

   	mov	ax, 4C01h
   	int	21h
   stop:
   	dword	20 dup (?)
   stack:
   	end	start

4. Decode the 16-bit DOS program to another alternate data stream, for example .dos, of the file or subdirectory created in step 1.:

   CERTUTIL.EXE /DecodeHex streams:.txt streams:.dos

   Input Length = 438
   Output Length = 144
   CertUtil: -decodehex command completed successfully.

5. Execute the 16-bit DOS program created in step 3.:

   .\streams:.dos

   The syntax of the command is incorrect.

   Oops¹: except for input and output redirection, and except for its internal Dir and Mklink commands, the Command Processor Cmd.exe fails to support alternate data streams!

6. Write a JScript that prints its pathname on standard output to the alternate data stream .js of the file or subdirectory created in step 1. and execute it with the Windows Script Host console application:

   1>streams:.js ECHO WScript.Echo(WScript.ScriptFullName)
   CSCRIPT.EXE streams:.js

   Microsoft (R) Windows Script Host, Version 5.8
   Copyright (C) Microsoft Corporation 1996-2001. All rights reserved.

   C:\Users\Stefan\Desktop\streams:.js

7. Write a VBScript that executes the 16-bit DOS program decoded in step 3. and prints its standard output to the alternate data stream .vbs of the file or subdirectory created in step 1. and execute it with the Windows Script Host console application:

   1>streams:.vbs ECHO WScript.Echo WScript.CreateObject("WScript.Shell").Exec("%CD%\streams:.dos").StdOut.ReadAll()
   CSCRIPT.EXE streams:.vbs

   32-bit editions of Windows execute the 16-bit DOS program:

   Microsoft (R) Windows Script Host, Version 5.8
   Copyright (C) Microsoft Corporation 1996-2001. All rights reserved.

   (C)opyright 2004-2026, Stefan Kanthak <‍stefan‍.‍kanthak‍@‍nexgo‍.‍de‍>

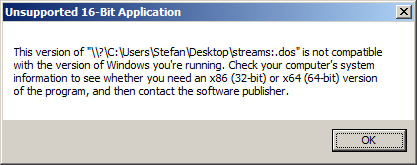

   64-bit editions of Windows don’t support 16-bit DOS programs and display the message box shown to the right:

   C:\Users\Stefan\Desktop\streams:.vbs(1, 1) WshShell.Exec: This version of C:\Users\Stefan\Desktop\streams:.dos is not compatible with the version of Windows you're running. Check your computer's system information to see whether you need an x86 (32-bit) or x64 (64-bit) version of the program, and then contact the software publisher.




8. Write an ANSI C source code to the alternate data stream .c of the file or subdirectory created in step 1.:

   1>streams:.c ECHO unsigned _DllMainCRTStartup(void *module, unsigned reason, void *context) { return 0; }

9. Compile and link the source code from the alternate data stream .c written in step 7.:

   SET CL=/Fa /Gz /LD /W4 /Zl
   SET LINK=/MANIFEST /MAP /NODEFAULTLIB /STUB:streams:.dos
   CL.EXE streams:.c

   Microsoft (R) 32-bit C/C++ Optimizing Compiler Version 16.00.40219.01 for 80x86
   Copyright (C) Microsoft Corporation.  All rights reserved.

   streams:.c

   Microsoft (R) Incremental Linker Version 10.00.40219.386
   Copyright (C) Microsoft Corporation.  All rights reserved.

   /MANIFEST /MAP /NODEFAULTLIB /STUB:streams:.dos
   /out:streams:.dll
   /dll
   /implib:streams:.lib
   streams:.obj

   Note: the Visual C compiler writes its output to one or more alternate data streams of the file or subdirectory from which it reads the alternate data stream with the (first) source, then the linker reads object file and DOS stub from and writes its output to one or more alternate data streams of the same file or subdirectory.

10. List the alternate data streams of the (still empty) file or subdirectory created in step 1.:

    DIR /R streams

     Volume in drive C has no label.
     Volume Serial Number is 1957-0427

     Directory of C:\Users\Stefan\Desktop

    04/27/2012  08:15 PM                 0 streams
                                       619 streams:.asm:$DATA
                                        89 streams:.c:$DATA
                                     1.024 streams:.dll:$DATA
                                       381 streams:.dll.manifest:$DATA
                                       144 streams:.dos:$DATA
                                        38 streams:.js:$DATA
                                       577 streams:.map:$DATA
                                       469 streams:.obj:$DATA
                                       438 streams:.txt:$DATA
                                       114 streams:.vbs:$DATA
                   1 File(s)              0 bytes
                   0 Dir(s)    9,876,543,210 bytes free

11. Execute the DLL built in step 8. via the Microsoft(C) Register Server application:



    REGSVR32.EXE "%CD%\streams:.dll"

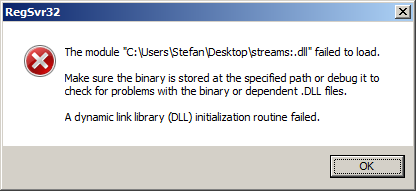

    Note: the error message box is expected – the _DllMainCRTStartup() function intentionally returns 0 alias FALSE to let the Win32 functions LoadLibrary() and LoadLibraryEx() fail with Win32 error code 1114 alias ERROR_DLL_INIT_FAILED.

    The MSKB article 249873 provides details.

12. Execute the DLL built in step 8. via the Windows host process (Rundll32) application:



    RUNDLL32.EXE "%CD%\streams:.dll",#0

    Rundll32

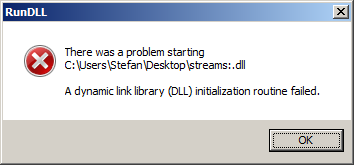

    Note: the error message box is expected – the _DllMainCRTStartup() function intentionally returns 0 alias FALSE to let the Win32 functions LoadLibrary() and LoadLibraryEx() fail with Win32 error code 1114 alias ERROR_DLL_INIT_FAILED.

13. Write another ANSI C source code to the alternate data stream .c of the file or subdirectory created in step 1.:

    1>streams:.c ECHO unsigned mainCRTStartup(void) { return 'NTFS'; }

14. Compile and link the source code from the alternate data stream .c overwritten in step 11.:

    SET CL=/Gd /W4 /Zl
    SET LINK=/ENTRY:mainCRTStartup /NODEFAULTLIB /STUB:streams:.dos /SUBSYSTEM:CONSOLE
    CL.EXE streams:.c

    Microsoft (R) 32-bit C/C++ Optimizing Compiler Version 16.00.40219.01 for 80x86
    Copyright (C) Microsoft Corporation.  All rights reserved.

    streams:.c

    Microsoft (R) Incremental Linker Version 10.00.40219.386
    Copyright (C) Microsoft Corporation.  All rights reserved.

    /ENTRY:mainCRTStartup /NODEFAULTLIB /STUB:streams:.dos /SUBSYSTEM:CONSOLE
    /out:streams:.exe
    streams:.obj

15. Write a VBScript that executes the Win32 console application built in step 12. and prints its exit code to the alternate data stream .vbs of the file or subdirectory created in step 1. and execute it with the Windows Script Host console application:

    IF EXIST streams @(
    ECHO With WScript.CreateObject("WScript.Shell"^).Exec("%CD%\streams:.exe"^)
    ECHO     Do
    ECHO         WScript.Sleep(99^)
    ECHO     Loop Until .Status = 1
    ECHO     WScript.Echo Hex(.ExitCode^)
    ECHO End With) 1>streams:.vbs
    CSCRIPT.EXE streams:.vbs

    Microsoft (R) Windows Script Host, Version 5.8
    Copyright (C) Microsoft Corporation 1996-2001. All rights reserved.

    4E544653

16. Write an intentionally invalid external manifest for the Win32 console application built in step 12. to the alternate data stream .exe.manifest of the file or subdirectory created in step 1.:

    1>streams:.exe.manifest ECHO ^<?xml version='1.0' encoding='US-ASCII' standalone='yes' ?^>

17. Execute the Win32 console application built in step 12. via the VBScript overwritten in step 13. again:

    CSCRIPT.EXE streams:.vbs

    Microsoft (R) Windows Script Host, Version 5.8
    Copyright (C) Microsoft Corporation 1996-2001. All rights reserved.

    C:\Users\Stefan\Desktop\streams:.vbs(1, 1) WshShell.Exec: The application has failed to start because its side-by-side configuration is incorrect. Please see the application event log or use the command-line sxstrace.exe tool for more detail.

    Oops²: Windows’ module loader honors external manifests for executable image files stored in alternate data streams!

18. Write another external manifest for the Win32 console application built in step 12. to the alternate data stream .exe.manifest of the file or subdirectory created in step 1.:

    IF EXIST streams @(
    ECHO ^<?xml version='1.0' encoding='UTF-8' standalone='yes' ?^>
    ECHO ^<assembly manifestVersion='1.0' xmlns='urn:schemas-microsoft-com:asm.v1'^>
    ECHO     ^<file loadFrom='%CD%\streams:.dll' name='kernel32.dll' /^>
    ECHO ^</assembly^>) 1>streams:.exe.manifest

19. Execute the Win32 console application built in step 12. via the VBScript overwritten in step 13. once more:



    CSCRIPT.EXE streams:.vbs

    Microsoft (R) Windows Script Host, Version 5.8
    Copyright (C) Microsoft Corporation 1996-2001. All rights reserved.

    C0000139

    OUCH: Windows’ module loader displays the error message box for NTSTATUS 0xC000007A alias STATUS_PROCEDURE_NOT_FOUND shown to the right – it loads multiple unreferenced DLLs with the Win32 console application built without dependencies in step 12. and fails with NTSTATUS 0xC0000139 alias STATUS_ENTRYPOINT_NOT_FOUND since the (external) manifest overwritten in step 16. redirects kernel32.dll kernelbase.dll advapi32.dll msvcrt.dll sechost.dll rpcrt4.dll sspicli.dll cryptbase.dll to the alternate data stream that contains the DLL built in step 8. without exports and imports!

20. Write yet another ANSI C source code to the alternate data stream .c of the file or subdirectory created in step 1.:

    1>streams:.c ECHO void wWinMainCRTStartup(void) { ExitProcess(MessageBox(HWND_DESKTOP, GetCommandLine(), __LPREFIX(__FUNCTION__), MB_OK) ? ERROR_SUCCESS : GetLastError()); }

21. Compile and link the source code from the alternate data stream .c overwritten in step 18.:

    SET CL=/DSTRICT /DUNICODE /DWIN32_LEAN_AND_MEAN /FIwindows.h /Gd /W4 /we4013 /Zl
    SET LINK=/ENTRY:wWinMainCRTStartup /FIXED /MANIFEST /NODEFAULTLIB /STUB:streams:.dos /SUBSYSTEM:WINDOWS
    CL.EXE streams:.c kernel32.lib user32.lib

    Microsoft (R) 32-bit C/C++ Optimizing Compiler Version 16.00.40219.01 for 80x86
    Copyright (C) Microsoft Corporation.  All rights reserved.

    streams:.c

    Microsoft (R) Incremental Linker Version 10.00.40219.386
    Copyright (C) Microsoft Corporation.  All rights reserved.

    /ENTRY:wWinMainCRTStartup /FIXED /MANIFEST /NODEFAULTLIB /STUB:streams:.dos /SUBSYSTEM:WINDOWS
    /out:streams:.exe
    kernel32.lib
    user32.lib
    streams:.obj

22. Execute the Windows application built in step 19. via the WMI Commandline Utility console application:



    WMIC.EXE PROCESS CALL CREATE "%CD%\streams:.exe"

    Executing (Win32_Process)->Create()
    Method execution successful.
    Out Parameters:
    instance of __PARAMETERS
    {
    	ProcessId = 9876;
    	ReturnValue = 0;
    };

23. Execute the Windows application built in step 19. via the BITS administration utility console application:

    BITSAdmin.exe /Create streams
    BITSAdmin.exe /AddFile "%CD%\streams" "%CD%\streams.tmp"
    BITSAdmin.exe /SetNotifyCmdLine streams "%CD%\streams:.exe" NULL
    BITSAdmin.exe /Resume streams
    BITSAdmin.exe /Complete streams

    BITSADMIN version 3.0 [ 7.5.7601 ]
    BITS administration utility.
    (C) Copyright 2000-2006 Microsoft Corp.

    BITSAdmin is deprecated and is not guaranteed to be available in future versions of Windows.
    Administrative tools for the BITS service are now provided by BITS PowerShell cmdlets.

    Created job {539A68AF-34AE-446F-B503-3C2158CE9B49}.

    BITSADMIN version 3.0 [ 7.5.7601 ]
    BITS administration utility.
    (C) Copyright 2000-2006 Microsoft Corp.

    BITSAdmin is deprecated and is not guaranteed to be available in future versions of Windows.
    Administrative tools for the BITS service are now provided by BITS PowerShell cmdlets.

    Added C:\Users\Stefan\Desktop\streams -> C:\Users\Stefan\Desktop\streams.tmp to job.

    BITSADMIN version 3.0 [ 7.5.7601 ]
    BITS administration utility.
    (C) Copyright 2000-2006 Microsoft Corp.

    BITSAdmin is deprecated and is not guaranteed to be available in future versions of Windows.
    Administrative tools for the BITS service are now provided by BITS PowerShell cmdlets.

    notification command line set to 'C:\Users\Stefan\Desktop\streams:.exe' 'NULL'.

    BITSADMIN version 3.0 [ 7.5.7601 ]
    BITS administration utility.
    (C) Copyright 2000-2006 Microsoft Corp.

    BITSAdmin is deprecated and is not guaranteed to be available in future versions of Windows.
    Administrative tools for the BITS service are now provided by BITS PowerShell cmdlets.

    Job resumed.

    BITSADMIN version 3.0 [ 7.5.7601 ]
    BITS administration utility.
    (C) Copyright 2000-2006 Microsoft Corp.

    BITSAdmin is deprecated and is not guaranteed to be available in future versions of Windows.
    Administrative tools for the BITS service are now provided by BITS PowerShell cmdlets.

    Job completed.

Contact and Feedback

Use the X.509 certificate to send S/MIME encrypted mail.

Note: email in weird format and without a proper sender name is likely to be discarded!

I dislike HTML (and even weirder formats too) in email, I prefer to receive plain text.
I also expect to see your full (real) name as sender, not your nickname.
I abhor top posts and expect inline quotes in replies.

Terms and Conditions

• The software and the documentation on this site are provided as is without any warranty, neither express nor implied.
  In no event will the author be held liable for any damage(s) arising from the use of the software or the documentation.
• Permission is granted to use the current version of the software and the current version of the documentation solely for personal private and non-commercial purposes.
  An individuals use of the software or the documentation in his or her capacity or function as an agent, (independent) contractor, employee, member or officer of a business, corporation or organisation (commercial or non-commercial) does not qualify as personal private and non-commercial purpose.
• Without written approval from the author the software or the documentation must not be used for a business, for commercial, corporate, governmental, military or organisational purposes of any kind, or in a commercial, corporate, governmental, military or organisational environment of any kind.
• Redistribution of the software and the documentation is allowed only in unmodified form of its current version and free of charge.

Data Protection Declaration

The web service is operated and provided by

The web service provider stores a session cookie in the web browser and records every visit of this web site with the following data in an access log on their server(s):

• the (pseudonymised) IP address;
• the date and time of the request;
• the URL of the requested web page or file;
• the Referer and User-Agent HTTP headers sent by the web browser;
• the result (success or failure) of the request;
• the amount of data received and sent.
